Maßgeschneiderte 36V 48V 72V 50ah 80ah 100ah Lithium-Tiefenzyklusbatterie für Golfwagen, Wohnmobil

2024-03-15 02:39

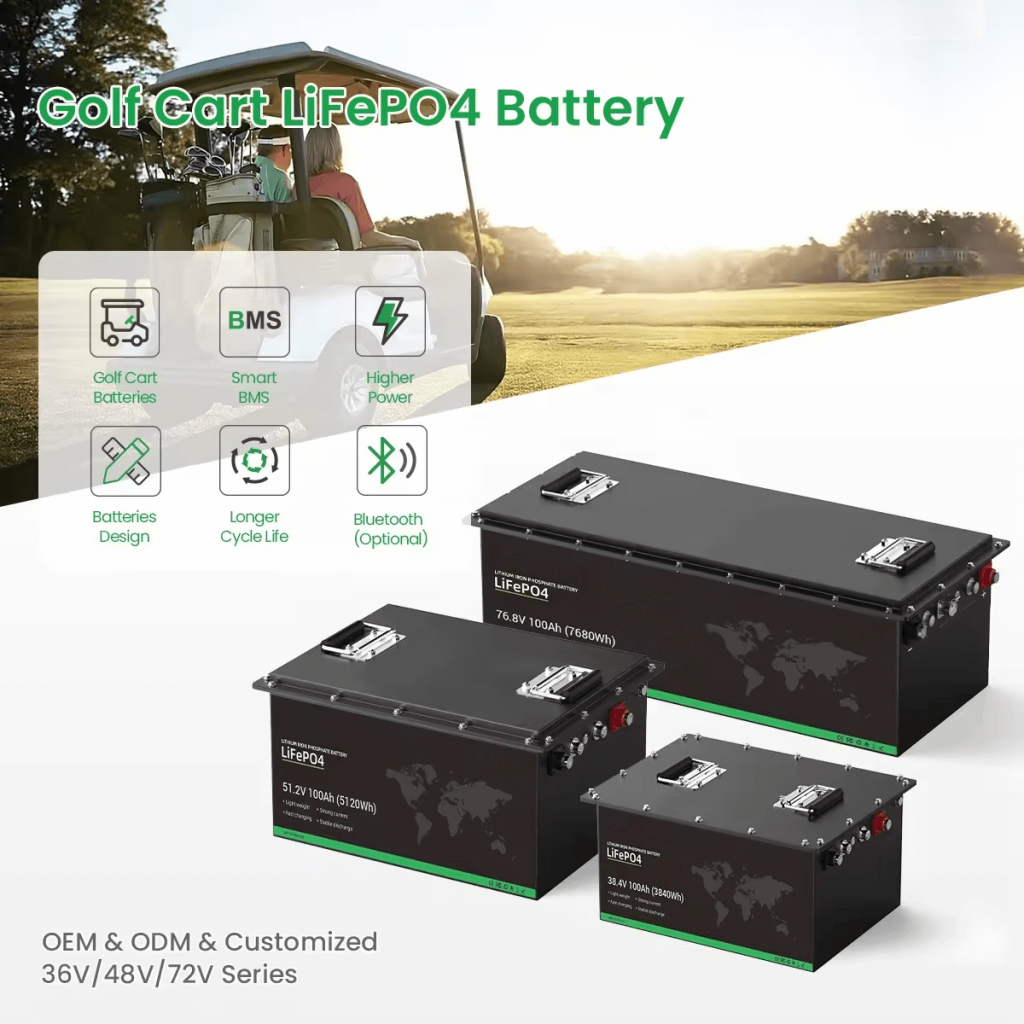

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Nennspannung	Nominale Kapazität	Nominal Energy	Abmessungen	Gewicht
36V  (Support Customized Capacity/Size)
LFP36-50	38,4 V.	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38,4 V.	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38,4 V.	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38,4 V.	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51,2 V.	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51,2 V.	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51,2 V.	80Ah	4096Wh	522*238*218mm	≈32.5kg

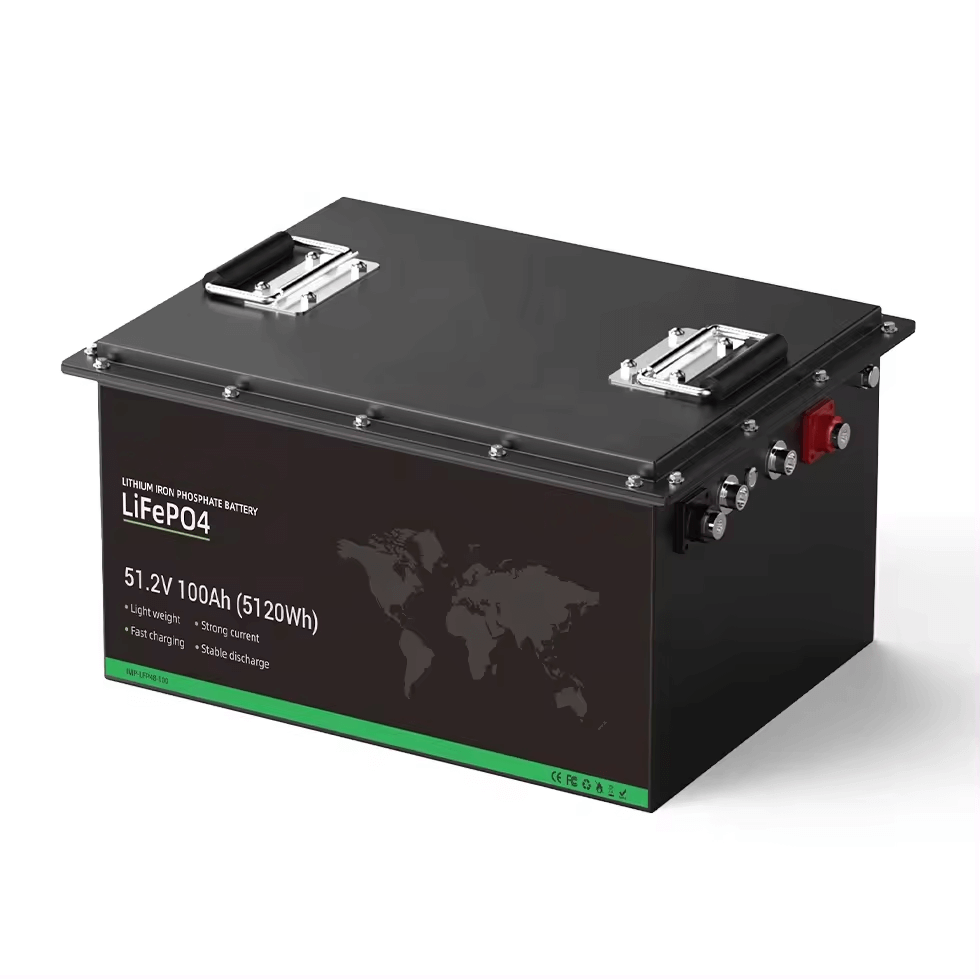

LFP48-100	51,2 V.	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76,8 V	50Ah	3840Wh	470*330*150mm	≈50kg

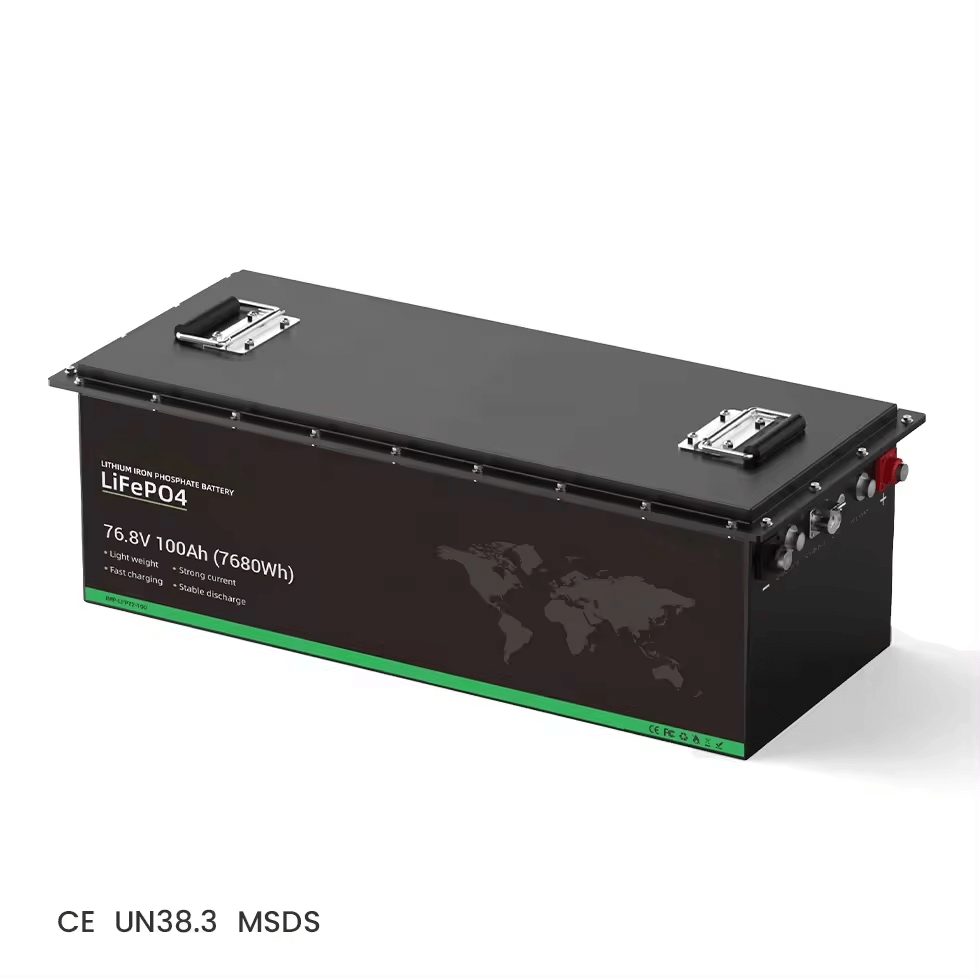

LFP72-100	76,8 V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Lebenszyklen		≥6000 cycles (80%DOD), at 25°C
Ladetemperatur		0 ~ 45°C (32 ~ 113°F)
Entladungstemperatur		-20 ~ 55°C(-4 ~ 131F)
Lagertemperatur		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Performance

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Anwendung

Unsere Fabrik



Versand und Verpackung

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Bei Großaufträgen per AIR oder OCEAN versenden.

FAQ

F: Sind Sie Handelsunternehmen oder Hersteller?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

F: Kann ich Proben zum Testen haben? Und was ist die Vorlaufzeit für die Musterbestellung?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

F: Akzeptieren Sie OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

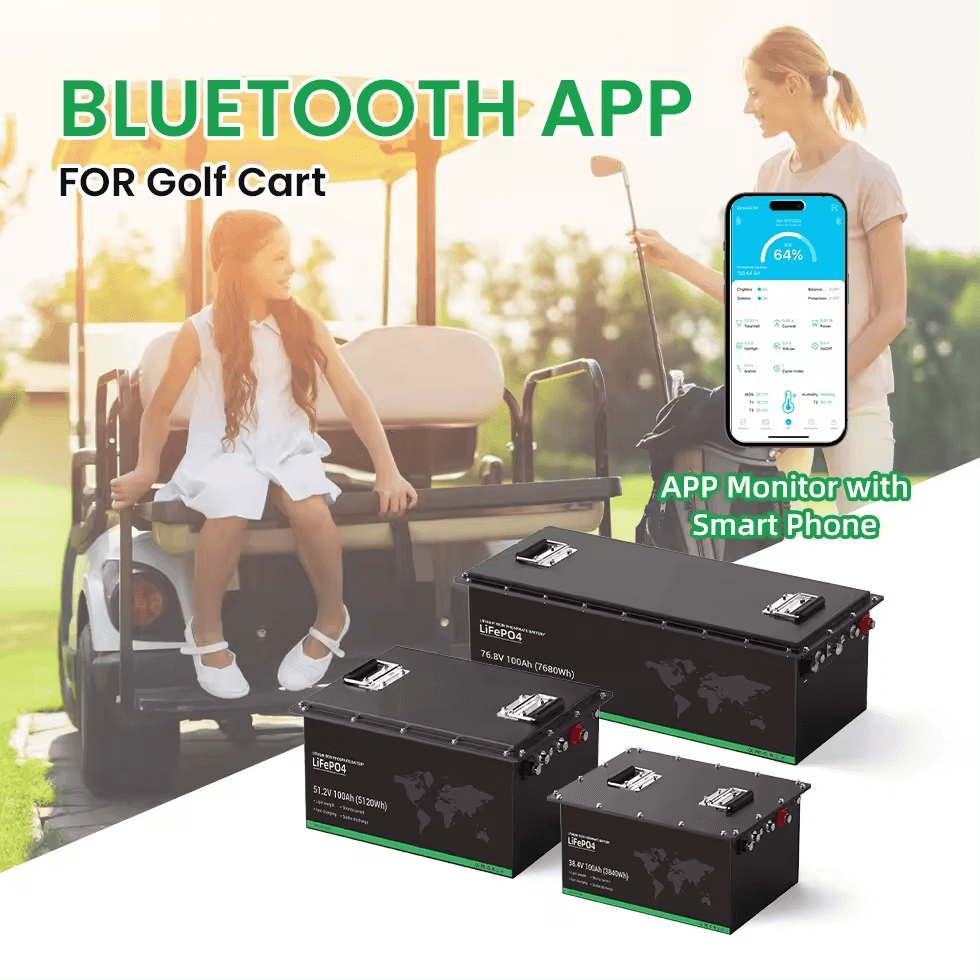

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: JA, mit der App können Sie die Spannung jedes einzelnen jederzeit ablesen.

F: Haben Sie eine tatsächliche Akkukapazität?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

F: Welche Art von Zertifikaten haben Sie?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

F: Haben Sie MOQ?
A: Nicht eingeschränkt. Kleine Bestellung auch willkommen. Mehr Menge hat besseren Preis, wir werden den besten Preis für Sie überprüfen.

F: Was ist Ihre Zahlungsfrist?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Verwendung von Lithium-Ladegeräten zum Aufwecken der Batterie. Das Lithium-Ladegerät weckt die Batterien automatisch auf.
