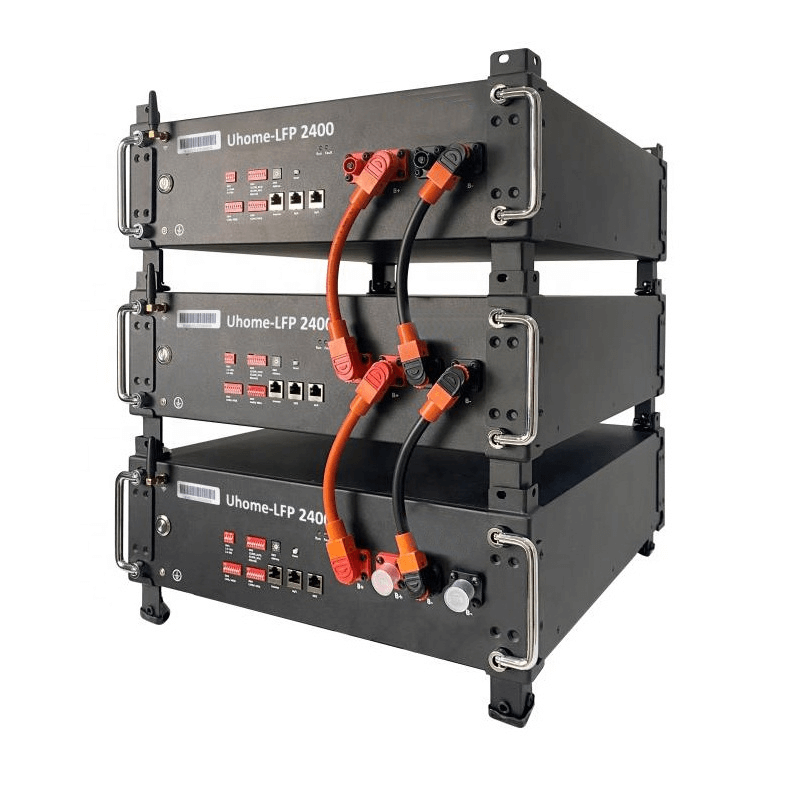

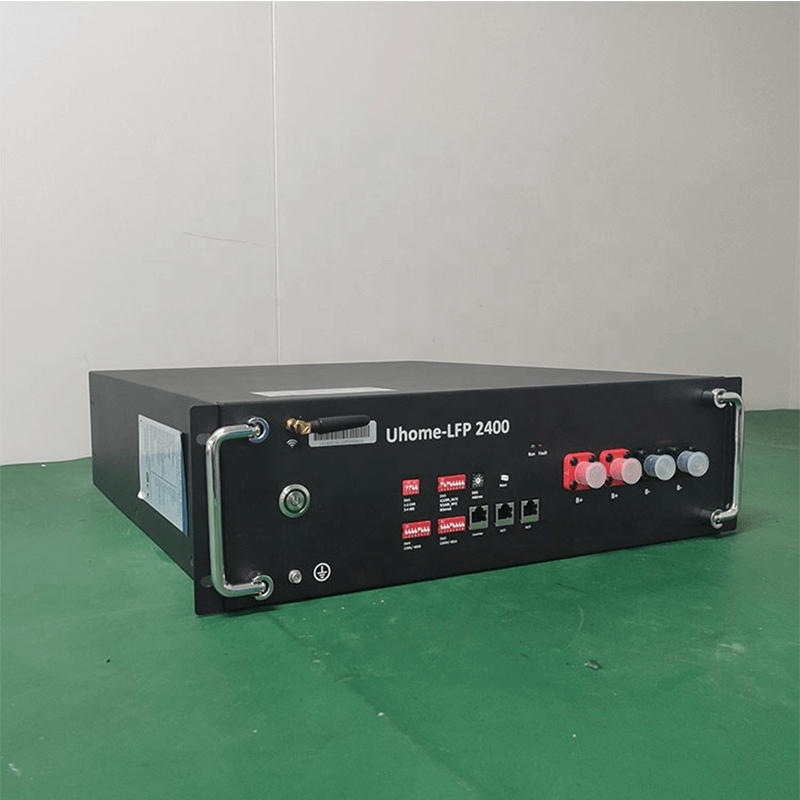

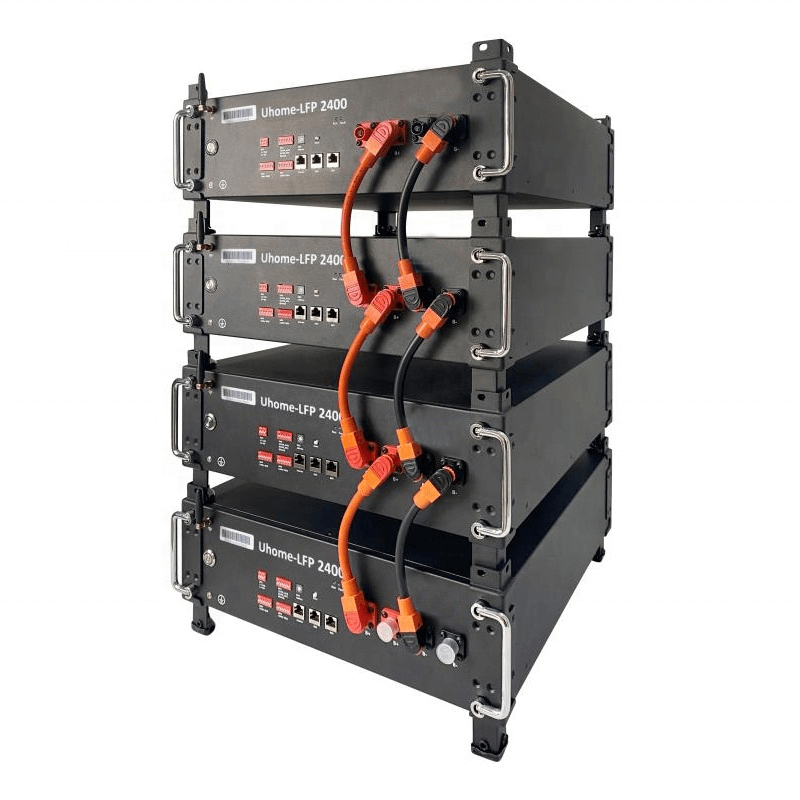

Modell | Uhome-LFP 5000 | Uhome-LFP 2400 | Uhome-LFP 2500 | Uhome-LFP 2600HV |
Gesamtenergie (DC) | 5.1kWh | 2,4 kWh | 2,5kWh | 2,56kWh |
Nutzbare Energie (DC) | 4,6kWh | 2,2kWh | 2,2kWh | 2,2kWh |
Normale Entlade-/Ladeleistung | 3.0kw | 2.75kw | 3.75kw | 4.6kw |
Spitzenleistung (nur Entladung) | 6kw für 3s | 3kw für 3s | 3kw für 3s | 3kw für 3s |
Konstanter Strom (nur Entladung) | 80A | 40A | 40A | 20A |
Stromspannung | 48-56Vdc | 48-56Vdc | 48-56Vdc | 96-112Vdc |
Normale Spannung | 51,2Vdc | 51,2Vdc | 51,2Vdc | 102,4Vdc |
Nennstrom | 60A | 30A | 30A | 15A |
Max.Ladespannung | 57,6Vdc | 57,6Vdc | 57,6Vdc | 115,2Vdc |
Gewicht | 45kg | 27,5kg | 23kg | 24 kg |
Abmessung (mm) | 500*442*135mm | 500*442*133mm | 500*442*88mm | 500*442*88mm |
Max. empfohlener DOD | 90% | |||
Betriebszustand | Indoor | |||
Betriebstemperatur | 0--45 Grad (Laden); -10-- 50 Grad (Entladen) | |||
WLAN-Frequenzbereich | 2400MHz--2483MHz | |||
Feuchtigkeit | <60% (Kein Kondenswasser) | |||
Verschmutzungsgrad | 3 | |||
Überspannungskategorie | II | |||
Kühlart | Natürliche Kühlung | |||
Gehäusematerial | Metall | |||
Farbe | Schwarz oder weiß | |||
Installation | Wandmontage/Bodenmontage | |||
IP-Bewertung | IP20 | |||
Schutzklasse | ich | |||
Max.Anzahl parallel oder seriell | 8S/4P | 8S/8P | 8S/8P | 6S |
Garantie | 10 Jahre | |||
Lebensdauer | >15 Jahre | |||
Kommunikation | CAN/RS485 | |||
Schutzmodus | Dualer Hardwareschutz | |||
Batterieschutz | Überstrom/Überspannung/Kurzschluss/Unterspannung/Übertemperatur | |||
Sicherheit | CE TÜV | |||
Gefahrstoffklassifizierung | 9 | |||
Transport | UN38.3 |
The Uhome Energy Storage battery has following advantages
1.Montage frei in Reihe oder parallel: bis zu 8S8P (448V326.4kWh)






A: Ja, wir freuen uns über eine Musterbestellung zum Testen und Überprüfen der Qualität.Q2. Was ist mit der Vorlaufzeit?
A:Sample needs 15-18 days, mass production time needs 25-30 days.Q3. Haben Sie ein MOQ-Limit für die Batterie?
A: Depends on different models.For the very regular models,the MOQ is LOW.
Q4. Wie versenden Sie die Waren und wie lange dauert es, bis sie ankommen?
A: We usually ship by TNT, UPS, FedEx.... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Wie gehe ich bei einer Bestellung für Batterie vor?
A: Firstly,pls let us know your requirements,such as the dimension,continuous&peak discharge current, application of the battery.
Secondly,pls let us know the purchasing quantity and when will your project start.We quote according to the details.
Thirdly customer confirms the price,sample and places deposit for formal order.
Viertens arrangieren wir die Produktion.
Q6. Is it OK to print my logo on battery ?
A: Ja. Bitte informieren Sie uns formell vor unserer Produktion und bestätigen Sie das Design zunächst anhand unseres Musters.
F7: Bieten Sie eine Garantie für die Produkte an?
A: Ja, wir bieten 12 Monate Garantie auf unsere Produkte.
F8: Wie gehe ich mit dem Fehler um?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order to replace the defective.
Thirdly,we will test the defective batteries and make 8D report.We will find out the reason and propose the
improvement measures for future production.
